Production line Flying Co2 Galvo Laser Marking Machine for Leather/Plastic/Wood/Acrylic/Carton/Bottle

FOB Reference Price:Get Latest Price
US$2,500.00 - US$8,500.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
30W
Model Number:
C1630
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 Negotiable
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Laser Type:
CO2
Working Accuracy:
0.01mm
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Application:
Laser Marking
Warranty:
2 Years
After-sales Service Provided:
Online support, Free Spare Parts, Field maintenance and repair service, Video technical support
Place of Origin:
China
Brand Name:
Grentsun
Certification:
CCC, CE, GS, ISO, SGS
Condition:
New
CNC or Not:
Yes
Control Software:
JCZ/Earain
Cooling Mode:
Air Cooling
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
Laser Source Brand:
RAYCUS
Control System Brand:
Earain
Key Selling Points:
High-accuracy
Marking Head Brand:
Grentsun
Product name:
Co2 Galvo Laser Marking Machine for Leather/Plastic/Wood
Laser Source:
USA Synrad laser source
Min Line Width:
0.1mm
Marking Speed:
≤7000mm/s
Power Supply:
AC220V,50Hz
Marking Area:
110mmx110mm
Laser wavelength:
10.6um
Applicable Material:
Acrylic, plastic, wood, leather, rubber
Keywords:
Co2 Laser Marking Machine
Laser Head Brand:
ZBTech
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case package
Port
Any port in china
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Product Description

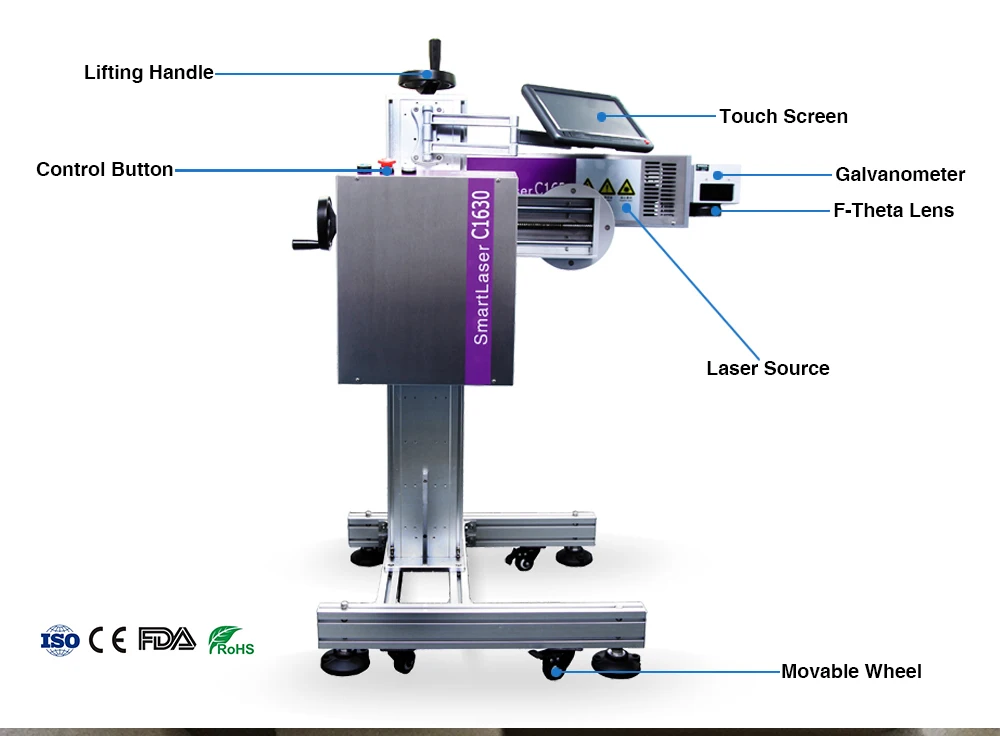

Co2 Galvo Laser Marking Machine for Leather/Plastic/Wood/Acrylic/Carton


With USA Synrad co2 laser

Widely application in different industries



The machine adopts the most advanced closed continuous CO2 laser device made in USA and the life of laser tube is over 45,000hours, which is especially suitable for laser cutting, carving and marking. The high speed galvanometer scanning system importedfrom USA has the advantages of high marking accuracy and fast processing speed.


Thoery of CO2 laser
CO2 laser marking machine is gas laser device whose band wavelength of infrared light is 10.6 µm. It uses CO2 filled in the discharge tube as medium that generates laser. When electrode is added high voltage, the discharge tube generates glow and then discharge, so that gas molecules release laser and the laser energy can form laser beam after amplifying. Changing the path of laser beam by using computer to control galvanometer can realize automatically marking.

Basic operation
The marking software is operated under Windows so it is easy to learn and convenient to operate. It allows files of AUTOCAD, AI, CORELDRW and supports PLT, PCX, DXF, BMP files and SHX, TTF font. It supports automatic coding, serial numbers, batch numbers, dates, bar codes and two- dimension code marking and the software has a function of back marking. It also supports marking bar codes, patterns, various fonts and automatically number jumping and coding, which is convenient to mark serial numbers, batch numbers and dates of products.


Product Name
30W CO2 laser marking machine
Model
C1630
Brand
Grentsun
Laser Wavelength
9.3-10.6um
Material
leather, rubber, plastic, eggs
Repeat Frequency
0-20KHz
Marking Depth
2mm (Determined by material)
Standard marking area
110mmx110mm
Marking Speed
7000mm/s
Min linear width
0.15mm
Minimum Character
0.4mm
Repeat Positioning Accuracy
0.01mm
Rated Power Consumption
<500W
Cooling
air cooling
Voltage
220V/50HZ/15A

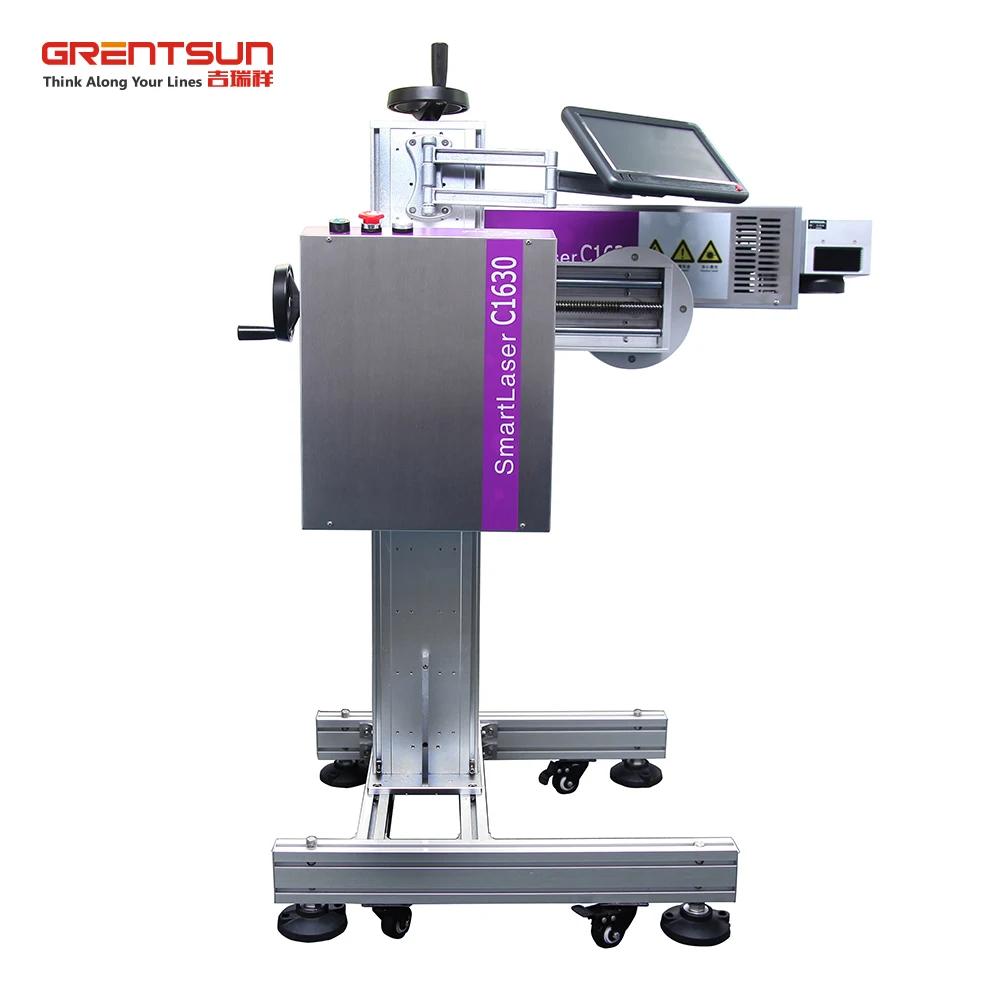

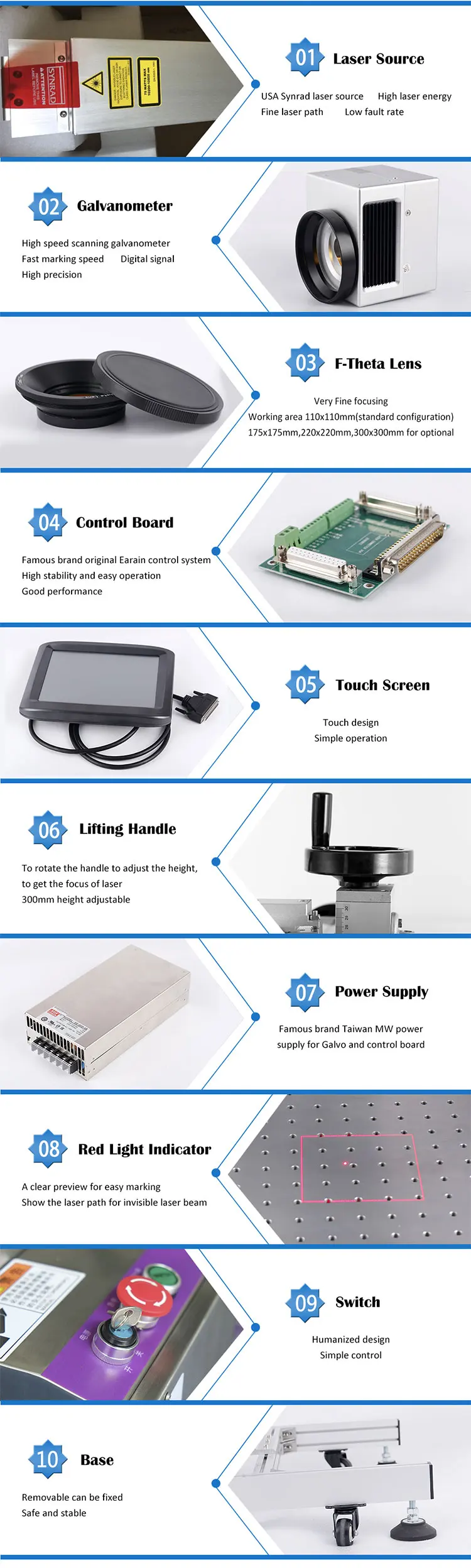

Products Show

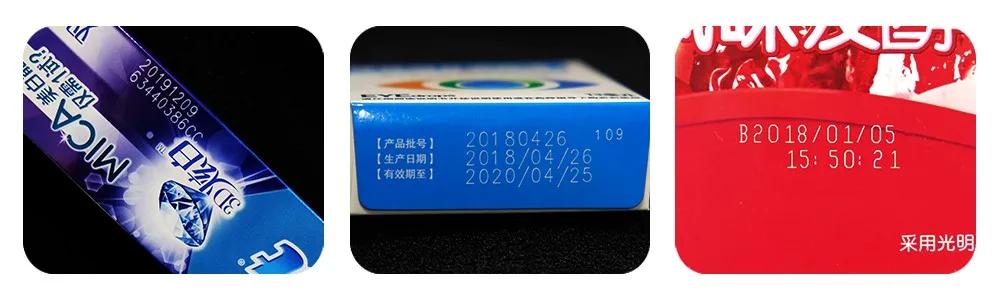

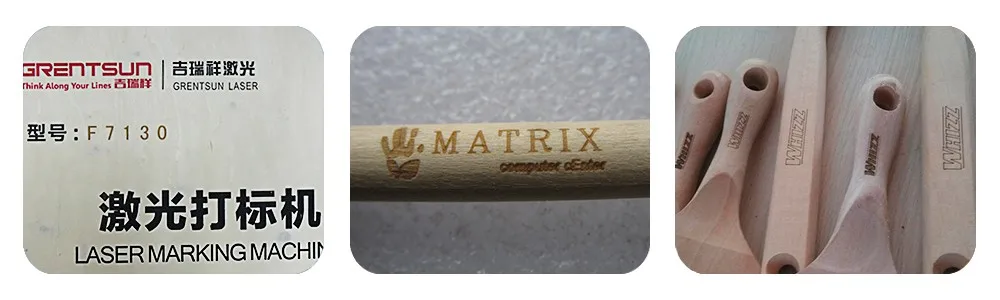

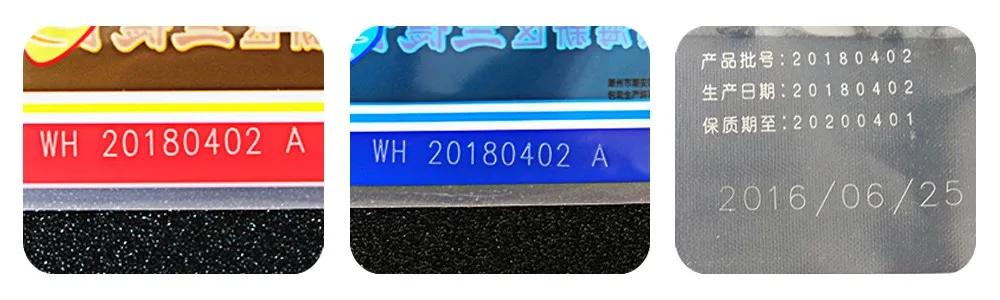

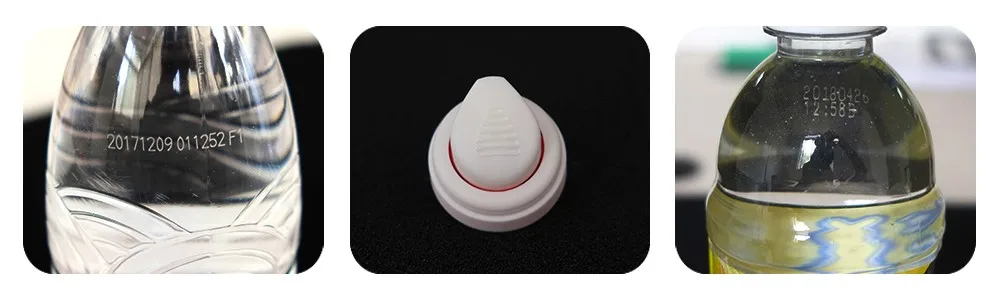

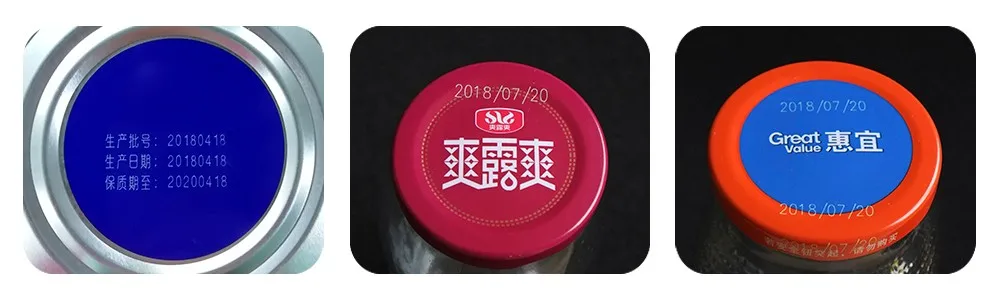

Application & Sample

Markings on the non- metal materials and surface of their products, such as plexiglass, ceramic, plastics, synthetic material,timber, rubber, leather, paper products ,Electronics industry: laser markings on capacitance, inductance, printed-circuit board,integrated circuit, instrument and control panel Daily supplies and clothing industry: button, cosmetics package, food package,
tobacco
and alcohol,stationery, artwork PVC, ABS material, acrylic, epoxy resin EP, leather, unsaturated polyester etc.

About Us

Why Choose Grentsun?

Packing & Delivery
Related Products

We supply Flying laser marking machine and static laser marking machine.

fiber laser marking machine/co2 laser marking machine/UV laser marking machine

/Portable/split/desktop laser marking machine
